Mean Well PLM-25-500 25 W CC LED driver 500 mA Mean Well PLM-25-500 25 W CC LED driver 500 mA – block diagram Mean Well PLM-25-500 25 W CC LED driver 500 mA – power factor characteristic
Mean Well PLM-25-500 25 W CC LED driver 500 mA
Mean Well PLM-25-500 25 W CC LED driver 500 mA – block diagram

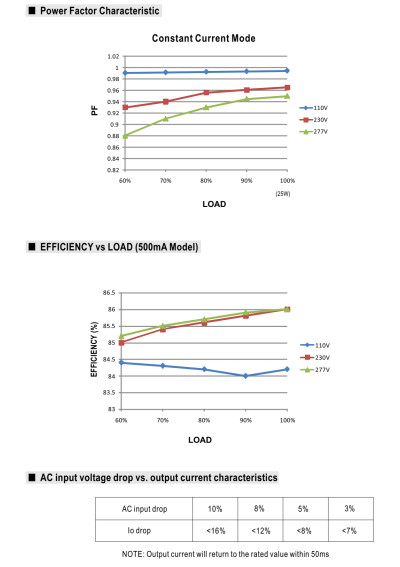

Mean Well PLM-25-500 25 W CC LED driver 500 mA – power factor characteristic

Mean Well PLM-25-500 25W 500mA 30–50V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
57.72 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_PLM-25-500

Mean Well PLM-25-500 is a 25 W constant-current LED driver rated at 500 mA, with a 30 V–50 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 55.28 PLN
10+ 54.46 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLM-25-500 – full product specification

Mean Well PLM-25-500 is a PLM-25-series power supply rated at 25 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 500 mA across a 30 V–50 V DC voltage region.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions145 × 38 × 22 mm
Document revisionPLM-25-SPEC 2026-02-09
Typical efficiency86 %
Input frequency47–63 Hz
Input range110–295 VAC / 156–417 VDC
Inrush current15 A
IP ratingIP30
Leakage current0.25 mA
Operating temperature-30–45 °C
Rated current500 mA
Operating modeConstant Current (CC)
CC-region maximum voltage50 V
CC-region minimum voltage30 V
Short-circuit protectionYes
Rated power25 W
Manufacturer warranty2 years
Weight0.126 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PLM-25-500

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
20,1-30
Output Current of CC power supply [mA]
500
CC operating window
30-50
Min. output voltage of led driver (CC)
30
Max. output voltage of led driver (CC)
50
IP grade
30
Length [mm]
145
Width [mm]
38
Height/thickness [mm]
22
Warranty [years]
2
Input voltage [V]
110-295

Specific References

EAN13
4711287443300
MPN
PLM-25-500
