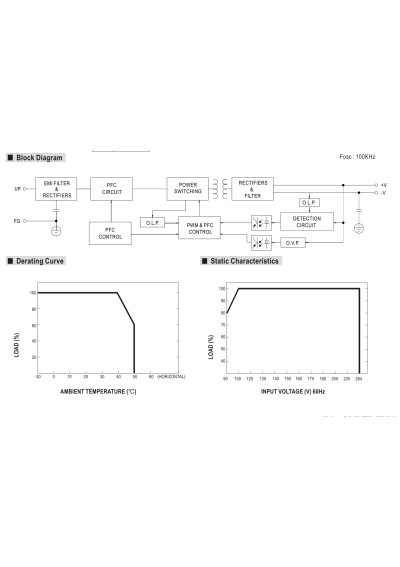

Mean Well PLC-100-27 95.85 W CV+CC LED driver – block diagram

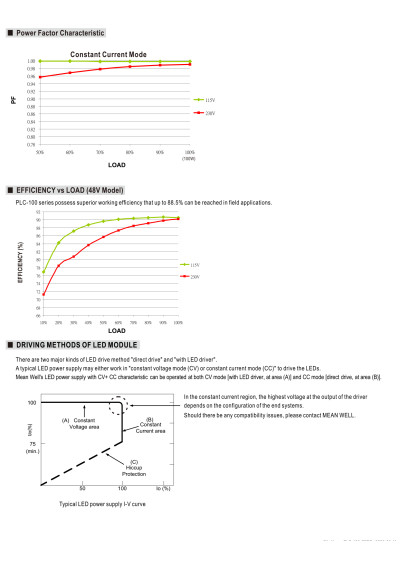

Mean Well PLC-100-27 95.85 W CV+CC LED driver – power factor characteristic

Mean Well PLC-100-27 95.85 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
195.11 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_PLC-100-27

Mean Well PLC-100-27 is a 95.85 W CV+CC LED driver with a 20.25 V–27 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 186.98 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLC-100-27 – full product specification

Mean Well PLC-100-27 is a PLC-100-series power supply rated at 95.85 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 20.25 V–27 V DC.

Full technical specifications

Coolingfree-air convection
Dimensions200.5 × 69.5 × 35 mm
Document revisionPLC-100-SPEC 2026-06-15
Typical efficiency88 %
hold_up_time230 vac ms: 60; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current40 A
Operating temperature-30–50 °C
Rated current3550 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage27 V
CC-region minimum voltage20.25 V
Output voltage27 V
Over-voltage protection range30–36 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power95.85 W
Manufacturer warranty2 years
Weight0.52 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PLC-100-27

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
3550
CC operating window
20.25-27
Min. output voltage of led driver (CC)
20.25
Max. output voltage of led driver (CC)
27
Length [mm]
200.5
Width [mm]
69.5
Height/thickness [mm]
35
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287460468
MPN
PLC-100-27
