Mean Well LPF-25D-24 25.2 W CV+CC LED driver
Mean Well LPF-25D-24 is a 25.2 W CV+CC LED driver with a 13.2 V–24 V constant-current region.
Mean Well LPF-25D-24 25.2 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
113.81 PLN
Shipment in 1-2 business days
tm_LPF-25D-24
Mean Well LPF-25D-24 is a 25.2 W CV+CC LED driver with a 13.2 V–24 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LPF-25D-24 – full product specification
Mean Well LPF-25D-24 is a LPF-25D-series power supply rated at 25.2 W. The parameters below come from the exact official manufacturer datasheet.

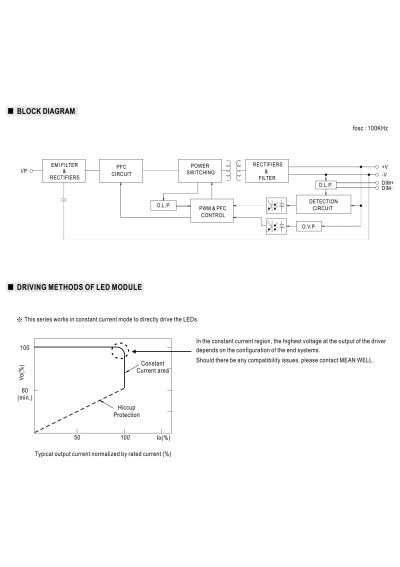

CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 13.2 V–24 V DC.
Full technical specifications

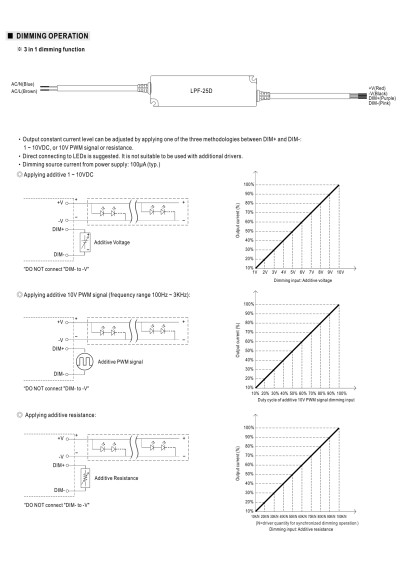

| 3-in-1 dimming | Yes |
|---|---|
| current_ripple_pct | 5 % |
| Dimensions | 148 × 40 × 32 mm |
| Document revision | LPF-25D-SPEC 2026-02-09 |

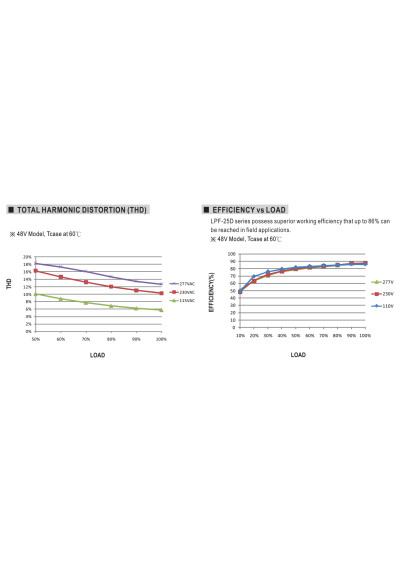

| Typical efficiency | 85.5 % |
| hold_up_time | 230 vac ms: 16; 115 vac ms: 16 |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 50 A |
| IP rating | IP67 |
| Rated current | 1050 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 24 V |
| CC-region minimum voltage | 13.2 V |
| Output voltage | 24 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 25.2 W |
| Manufacturer warranty | 5 years |
| Weight | 0.36 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_LPF-25D-24
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 20,1-30
- Output Current of CC power supply [mA]
- 1050
- CC operating window
- 13.2-24
- Min. output voltage of led driver (CC)
- 13.2
- Max. output voltage of led driver (CC)
- 24
- IP grade
- 67
- Length [mm]
- 148
- Width [mm]
- 40
- Height/thickness [mm]
- 32
- Warranty [years]
- 5
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287458731
- MPN
- LPF-25D-24
