Mean Well LPC-150-2800 151.2W 2800mA 215–430V Constant Current (CC) LED driver
Mean Well LPC-150-2800 is a 151.2 W constant-current LED driver rated at 2800 mA, with a 215 V–430 V output-voltage region.
Mean Well LPC-150-2800 151.2W 2800mA 215–430V Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
146.33 PLN
Shipment in 8-10 working days
tm_LPC-150-2800
Mean Well LPC-150-2800 is a 151.2 W constant-current LED driver rated at 2800 mA, with a 215 V–430 V output-voltage region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LPC-150-2800 – full product specification
Mean Well LPC-150-2800 is a LPC-150-series power supply rated at 151.2 W. The parameters below come from the exact official manufacturer datasheet.
Constant-current output
The model regulates 2800 mA across a 215 V–430 V DC voltage region.
Full technical specifications
| Fully isolated enclosure | Yes |
|---|---|
| Enclosure material | plastic |
| Cooling | free-air convection |
| current_accuracy_pct | 5 % |
| Dimensions | 191 × 63 × 37.5 mm |
| Document revision | LPC-150-SPEC 2025-12-12 |
| Typical efficiency | 90 % |
| Input frequency | 47–63 Hz |
| Inrush current | 40 A |
| IP rating | IP67 |
| Operating temperature | -25–50 °C |
| Rated current | 2800 mA |
| Operating mode | Constant Current (CC) |
| CC-region maximum voltage | 430 V |
| CC-region minimum voltage | 215 V |
| Over-voltage protection range | 63–75 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 151.2 W |
| Manufacturer warranty | 2 years |
| Weight | 0.74 kg |
| Withstand voltage | 3 kVAC |

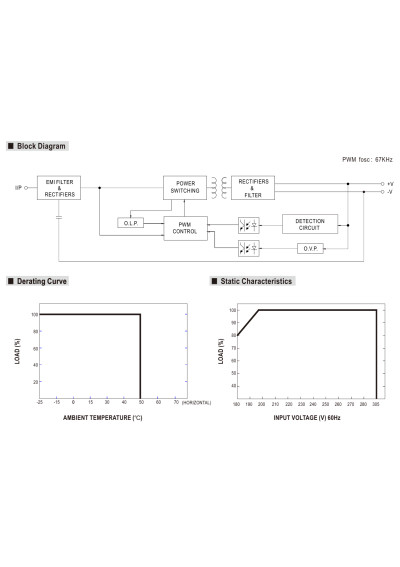

Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
Manufacturer information: Mean Well states that the LPC-150 series is not intended for LED lighting luminaire applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
tm_LPC-150-2800
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 100,1-249
- Output Current of CC power supply [mA]
- 2800
- CC operating window
- 215-430
- Min. output voltage of led driver (CC)
- 215
- Max. output voltage of led driver (CC)
- 430
- IP grade
- 67
- Length [mm]
- 191
- Width [mm]
- 63
- Height/thickness [mm]
- 37.5
- Warranty [years]
- 2
Specific References
- EAN13
- 4711287456065
- MPN
- LPC-150-2800
