Tridonic LCA 100W 250–700mA one4all lp PRE PSU | LEDownia.pl

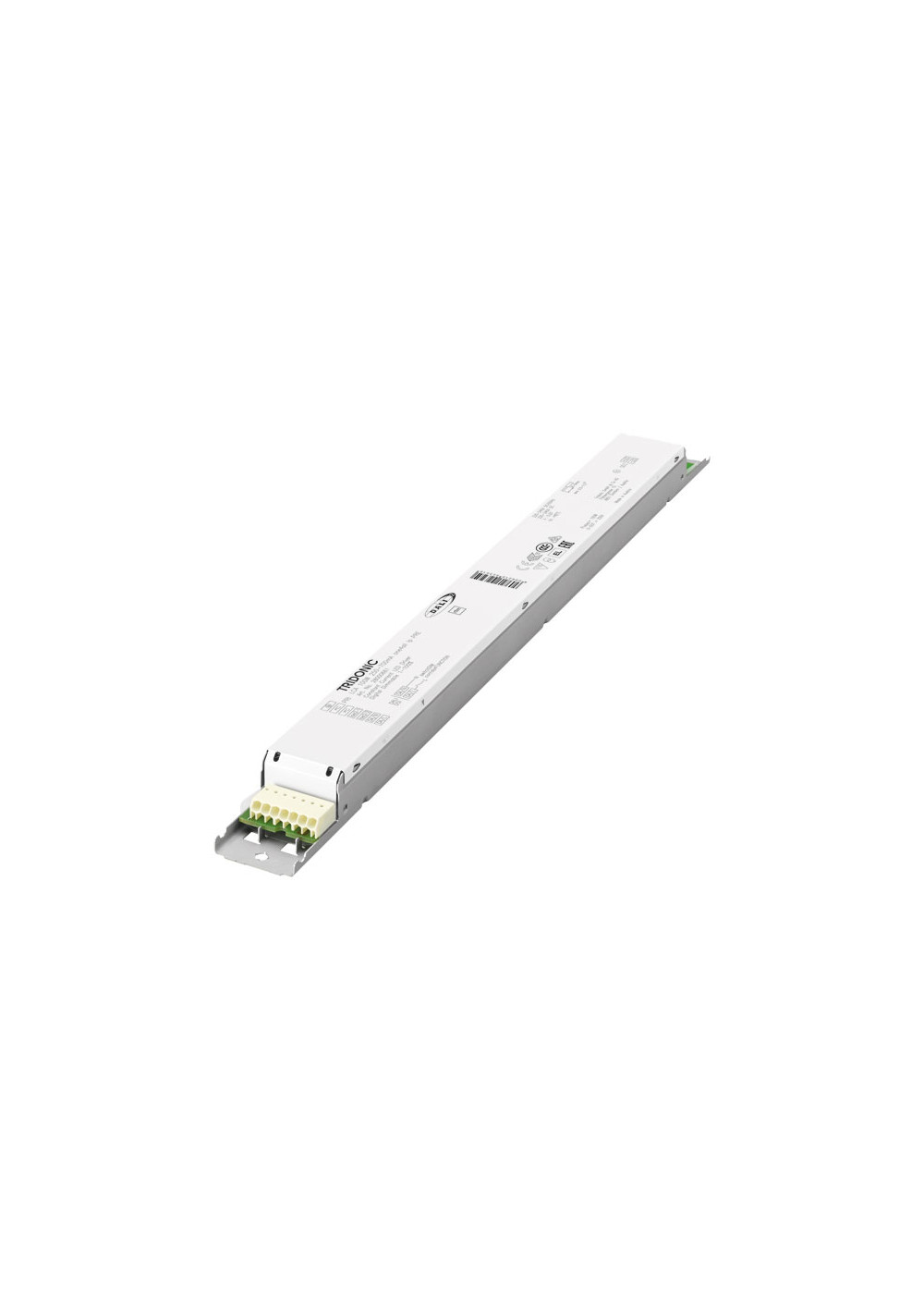

LED power supply | Tridonic LCA 100W 250–700mA one4all lp PRE

Name: LED power supply | Tridonic LCA 100W 250–700mA one4all lp PRE
Brand: Tridonic
SKU: zas_tridonic_28000661
Price: 306.5 PLN
Availability: InStock

306.50 PLN

Shipment in 1-2 business days

Category: Constant Current (CC)

Reference: zas_tridonic_28000661

The Tridonic LCA 100W 250–700mA one4all lp PRE LED power supply is a professional solution for linear and area lighting. It supports DALI‑2, DSI, switchDIM and ready2mains, offers 1–100% dimming and adjustable output current from 250 to 700 mA. The slim 360 × 30 × 21 mm ML300 housing makes installation easy in class I and II luminaires.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

Tridonic LCA 100W 250–700mA one4all lp PRE LED power supply – technical data

Maximum output power	100 W
Output current range	250–700 mA (1 mA steps)
Output voltage range	80–220 V DC depending on current
Rated supply voltage	220–240 V AC
AC voltage range	198–264 V AC
DC voltage range	176–280 V DC
Mains frequency	0 / 50 / 60 Hz
Typical efficiency	up to 93%
Max input power	111 W
Stand‑by power consumption	< 0.15 W
Power factor at full load	0.97
Output current ripple (< 120 Hz)	± 2%
Dimming range	1–100%
Control interfaces	DALI‑2 DT6, DSI, switchDIM, corridorFUNCTION, ready2mains
Current setting	DALI, ready2mains, I‑SELECT 2
Housing type	low profile ML300, white cover
Protection class	IP20
Dimensions	360 × 30 × 21 mm
Leakage current	< 460 µA
Inrush current	33 A / 280 µs
Ambient temperature ta	-25 – +60 °C, depending on current
Max tc temperature	up to 85 °C
Rated lifetime	up to 100,000 h
Manufacturer warranty	5 years
Standards	EN 55015, EN 61000-3-2, EN 61347-1, EN 62384, EN 62386-207 and more
Typical applications	linear and area office lighting, panels, trunking systems
Product website	http://www.tridonic.com/28000661

Led power supply for demanding office lighting

This LED power supply is designed for modern linear and panel luminaires in office spaces. The wide 250–700 mA current range gives strong design flexibility. You can match the operating point precisely to the connected LED modules.

The slim 21 mm profile allows easy integration into suspended ceilings and compact fittings. It is suitable for class I and class II luminaires. That makes the power supply a good choice for both new installations and refurbishments.

Led power supply with advanced DALI‑2 dimming

The unit supports multiple control methods for maximum compatibility. Available options are DALI‑2 DT6, DSI, switchDIM, corridorFUNCTION and ready2mains. You can easily integrate it with building lighting control systems.

The dimming range from 1 to 100% enables precise scene setting and energy savings. Amplitude dimming technology ensures flicker‑free and comfortable light. Functions like CLO, power‑up fading and fade2zero improve user comfort and visual experience.

Energy efficient and reliable power supply

The LED power supply reaches typical efficiency up to 93% at full load. Stand‑by power consumption below 0.15 W helps reduce overall energy costs. Intelligent Voltage Guard monitors overvoltage and undervoltage on the mains side.

Integrated protection covers overtemperature, short circuit, overload and no‑load operation. The long rated lifetime up to 100,000 hours reduces maintenance in professional projects. A five‑year manufacturer warranty underlines the high reliability level. This makes the power supply a solid choice for high quality office and commercial lighting.
