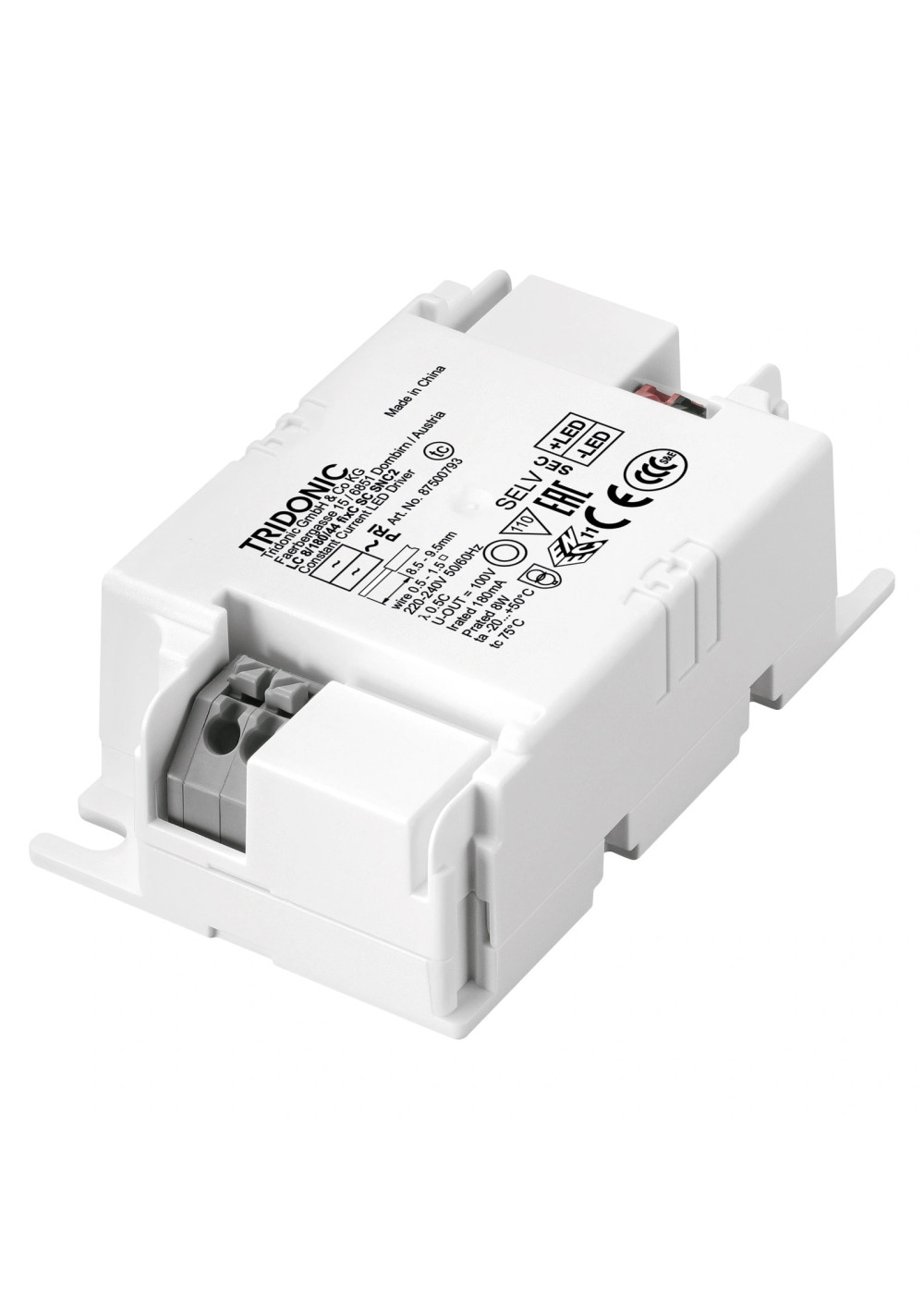

LED power supply Tridonic LC 8W 200mA 40V fixC SC SNC2

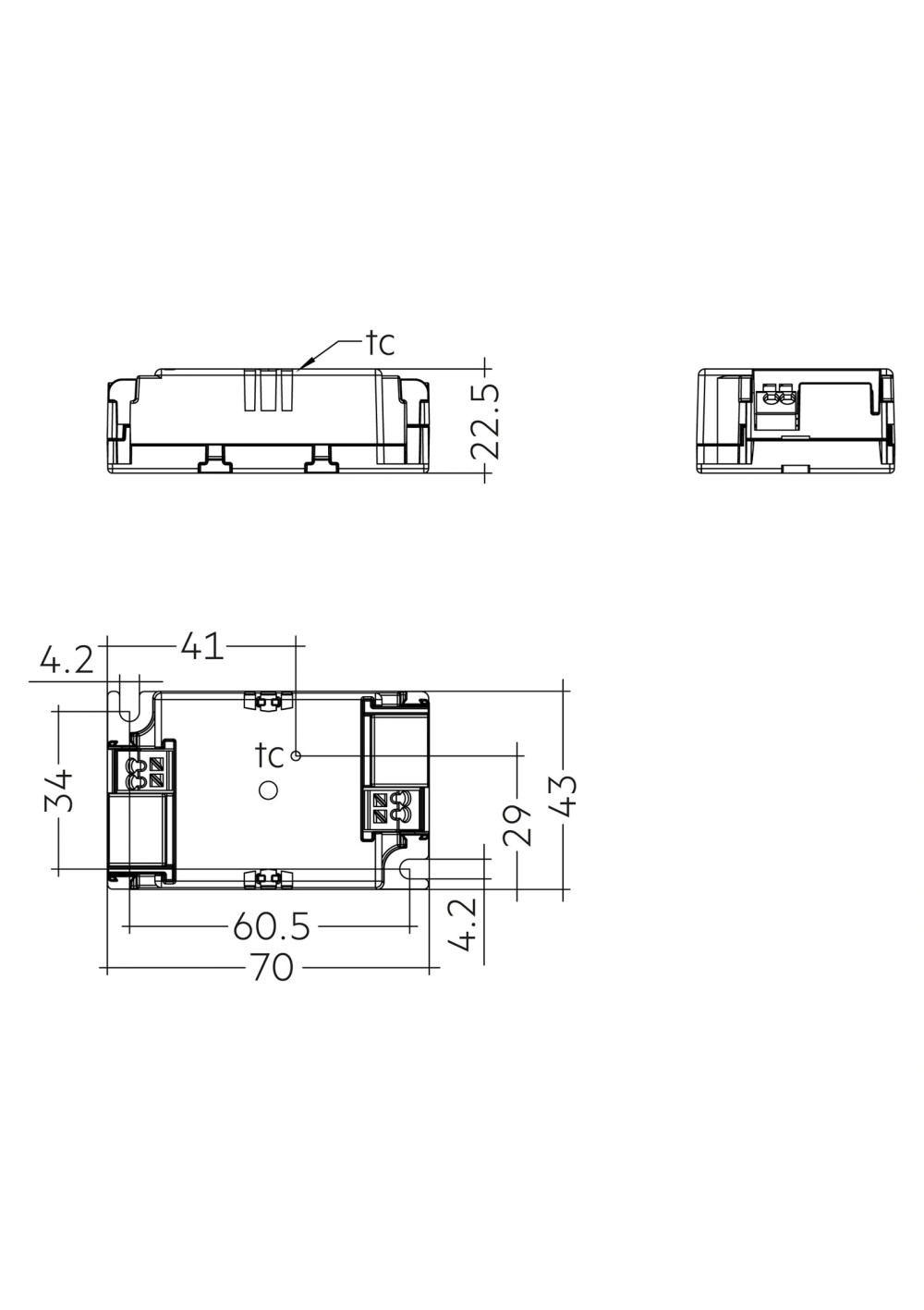

Dimensional drawing LC 8W 200mA 40V fixC SC SNC2

LED power supply Tridonic LC 8/200/40 fixC SC SNC2

Name: LED power supply Tridonic LC 8/200/40 fixC SC SNC2
Brand: LEDownia.pl
SKU: zas_tridonic_87500794
Price: 60 PLN
Availability: BackOrder

60.00 PLN

Shipment in 8-10 working days

Category: Constant Current (CC)

Reference: zas_tridonic_87500794

LED power supply Tridonic LC 8W 200mA 40V fixC SC SNC2 is a constant current LED driver rated up to 8 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LC 8W 200mA 40V fixC SC SNC2 is a constant current LED driver in the Driver LC 8W 180/200mA fixC SC SNC2 family. Official article number 87500794 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	87500794
Manufacturer family	Driver LC 8W 180/200mA fixC SC SNC2
Manufacturer product group	Compact drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
Mains frequency	50 / 60 Hz
Overvoltage protection	320 V AC, 1 h
THD at 230V, full load	<120 %
Starting time	≤0.5 s
Turn off time	≤0.5 s
Hold on time	0 s
Output LF current ripple (< 120 Hz) / Current ripple at full load	±5 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Storage temperature ts	-40–80 °C
Guarantee	5 years
Output current	200 mA
Input current, 230V, full load	78.0 mA
Min./Max. forward voltage	23 V; 40 V
Max. output voltage	100 V
Typ. output power	8 W
Output power range	4.6–8 W
Power Consumption	9.5 W; 10 W
Efficiency at min./full load	80 %; 82 %
λ over full operating range (max.)	0.55C
λ over full operating range (min.)	0.5C
Output current tolerance, min./full load	±7.5 %
Max. repetitive output peak current	225 mA
Output current ripple	±5 %
Ambient temperature ta	40 °C; -20–50 °C
Max. casing temperature tc	75 °C
Lifetime	up to 50000 h
Length	70 mm
Width	43 mm
Height	22.5 mm
Output mode	CC
Maximum output power [W]	8
Input voltage	220 – 240 V
Warranty [years]	5
Maximum casing temperature tc	75 °C
Storage temperature	-40–80 °C
THD	<120 %
Dimensions L×W×H	70 × 43 × 22.5 mm
Lifetime [h]	up to 50000 h
Product net weight	0.038 kg
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	Fixed output LED driver
Manufacturer note: Product description	Can be either used built-in or independent with clip-on strain-relief (see accessory)
Manufacturer note: Product description	Independent LED driver with cable clamps
Manufacturer note: Product description	Constant current LED driver
Manufacturer note: Product description	For luminaires of protection class II
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Output current 200 mA
Manufacturer note: Product description	Max. output power 8 W
Manufacturer note: Product description	Nominal lifetime up to 50,000 h
Manufacturer note: Product description	5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Housing properties	Casing: polycarbonate, white
Manufacturer note: Housing properties	Type of protection IP20
Manufacturer note: Functions	Overload protection
Manufacturer note: Functions	Short-circuit protection
Manufacturer note: Functions	No-load protection
Manufacturer note: Functions	Burst protection voltage 1 kV
Manufacturer note: Functions	Surge protection voltage 0.5 kV (L to N)
Manufacturer note: Functions	Surge protection voltage 1 kV (L/N to earth)
Manufacturer note: Typical applications	For spot light and downlight in retail and hospitality applications
Manufacturer note: Typical applications	For panel light and area light in office and education application

Operating points

Point	Output current	Input current, 230V, full load	Min./Max. forward voltage	Max. output voltage	Typ. output power	Output power range	Power Consumption	Efficiency at min./full load	λ over full operating range (max.)	λ over full operating range (min.)	Output current tolerance, min./full load	Max. repetitive output peak current	Output current ripple	Ambient temperature ta	Max. casing temperature tc	Lifetime	Length	Width	Height
1	200 mA	78.0 mA	23 V; 40 V	100 V	8 W	4.6–8 W	9.5 W; 10 W	80 %; 82 %	0.55C	0.5C	±7.5 %	225 mA	±5 %	40 °C; -20–50 °C	75 °C	up to 50000 h	70 mm	43 mm	22.5 mm

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.

Installation / application

Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.

Main source of information: www.tridonic.com
