LED power supply Tridonic LC 17/250-400/42 flexC | LEDownia.pl

LED power supply | Tridonic LC 62W 700 - 1400mA 57V flexC SC SNC4

Name: LED power supply | Tridonic LC 62W 700 - 1400mA 57V flexC SC SNC4
Brand: Tridonic
SKU: zas_tridonic_87501125
Price: 170 PLN
Availability: InStock

170.00 PLN

Shipment in 1-2 business days

Category: Constant Current (CC)

Reference: zas_tridonic_87501125

Fixed current LED power supply Tridonic LC 17/250-400/42 flexC SC SNC4 with power up to 16.8 W. Output current 250–400 mA adjustable via DIP switch. Designed for downlights, spotlights and LED panels in office and retail applications.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LC 62/700-1400/57 flexC SC SNC4 – technical data

Maximum power	62 W
Output current range	700 / 800 / 900 / 1050 / 1100 / 1200 / 1300 / 1400 mA (DIP)
Output voltage	27–57 V DC
Operating type	fixed current, constant output
Input voltage	220–240 V AC
Frequency	50 / 60 Hz
Typical efficiency	up to 91%
Power factor	up to 0.97
THD	< 10%
Ambient temperature ta	-20…+50 °C
Storage temperature	-40…+80 °C
Protection class	IP20

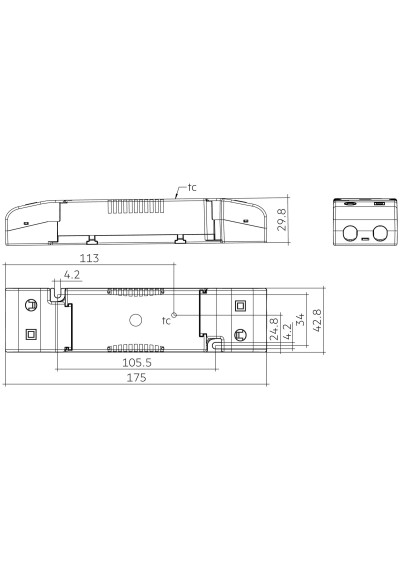

Dimensions	115 x 43 x 30 mm
Lifetime	up to 100,000 h
Manufacturer warranty	5 years
Housing type	built in or independent use
Product website	https://www.tridonic.com/en/int/product/87501125

LED power supply for downlights and panels – applications

This LED power supply from the Tridonic essence series is designed for modern luminaires. It is ideal for downlights and spotlights in retail spaces. It also works very well with panel and area luminaires in offices or schools. The compact housing allows mounting inside the luminaire or as an independent power supply. Optional clip on strain relief supports safe cable fixing for ceiling installations.

The power supply supports luminaires of protection class I and II. This makes it suitable for many professional lighting projects. Low output ripple helps to reduce visible flicker on the LED modules. That improves comfort for users in workplaces and educational buildings.

LED power supply 62W 700–1400 mA – flexible setup

The output current of the power supply is adjustable by DIP switch. You can select 700 / 800 / 900 / 1050 / 1100 / 1200 / 1300 / 1400 mA depending on the LED module. This allows precise matching of the power supply to the required current. Maximum output power at 1400 mA is 62 W with high efficiency. Lower current settings reduce power and the thermal load on the components.

The fixed current output provides stable supply for LED modules. Typical efficiency up to 91% helps to minimise energy losses. A high power factor up to 0.97 reduces reactive power in the installation. That is important in larger commercial projects with many luminaires.

LED power supply with full set of protections

The unit includes comprehensive protection features for safe operation. It offers overload, short circuit and no load protection on the output. Over temperature protection limits current or temporarily switches off when overheating. After the fault is removed the power supply returns to normal operation automatically.

The polycarbonate housing has IP20 rating for indoor dry environments. The product complies with relevant EMC and safety standards for lighting. It is tested for up to 50,000 switching cycles and long lifetime. Together with five year warranty it is a reliable choice for installers and lighting designers.
