Mean Well APC-25-500 25.2W 500mA 15–50V Constant Current (CC) LED driver
Mean Well APC-25-500 is a 25.2 W constant-current LED driver rated at 500 mA, with a 15–50 V DC output voltage range. IP rating IP42.
Mean Well APC-25-500 25.2W 500mA 15–50V Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
50.40 PLN
Shipment in 8-10 working days
tm_APC-25-500
Mean Well APC-25-500 is a 25.2 W constant-current LED driver rated at 500 mA, with a 15–50 V DC output voltage range. IP rating IP42.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
APC-25-500 – full product specification
Mean Well APC-25-500 is an LED power supply from the APC-25 series with a 25.2 W rated output. The verified manufacturer datasheet data below supports correct circuit and operating-condition selection.
Selection and output
Select this driver for an LED circuit rated at 500 mA. The required operating voltage of the complete powered circuit must remain within 15–50 V DC, while the connected load must also remain within the rated output power.
Input and efficiency
The specified input range is 90–264 VAC / 127–370 VDC. The input frequency range is 47–63 Hz. Manufacturer-specified typical efficiency is 83 %.
Full technical specifications
| Manufacturer | Mean Well |
|---|---|
| Series | APC-25 |
| Model | APC-25-500 |
| Operating mode | Constant Current (CC) |
| Rated power | 25.2 W |
| Output current | 500 mA |
| Output voltage range | 15–50 V DC |
| Input voltage range | 90–264 VAC / 127–370 VDC |
| Input frequency | 47–63 Hz |
| Typical efficiency | 83 % |
| Current accuracy | 8 % |
| Current ripple | 5 % |
| AC input current | 0.8 A (115 V AC); 0.4 A (230 V AC) |
| Inrush current | 45 A |
| Leakage current | 0.25 mA |
| Hold-up time | 12 ms (115 V AC); 20 ms (230 V AC) |
| Over-voltage protection range | 55–68 V |
| Short-circuit protection | Yes |
| Over-voltage protection | Yes |
| Fully isolated enclosure | Yes |
| Enclosure material | plastic |
| Cooling | free-air convection |
| Withstand voltage | 3 kVAC |
| Insulation resistance | 100 MΩ |
| IP rating | IP42 |
| Connection leads | 18AWG, UL1569, 150 ±10 mm |
| Operating temperature | -30–70 °C |
| Dimensions (L × W × H) | 84 × 57 × 29.5 mm |
| Technical weight | 0.13 kg |
| Manufacturer warranty | 2 years |
Protection and construction
- Short-circuit protection: Yes
- Over-voltage protection: Yes
- Over-voltage protection range: 55–68 V
- Fully isolated enclosure: Yes
- Enclosure material: plastic
- Cooling: free-air convection
- Withstand voltage: 3 kVAC
- Insulation resistance: 100 MΩ
- IP rating: IP42
- Connection leads: 18AWG, UL1569, 150 ±10 mm
Operating conditions and mechanical data
Operating temperature: -30–70 °C; Dimensions (L × W × H): 84 × 57 × 29.5 mm; Technical weight: 0.13 kg; Manufacturer warranty: 2 years.
Manufacturer datasheet

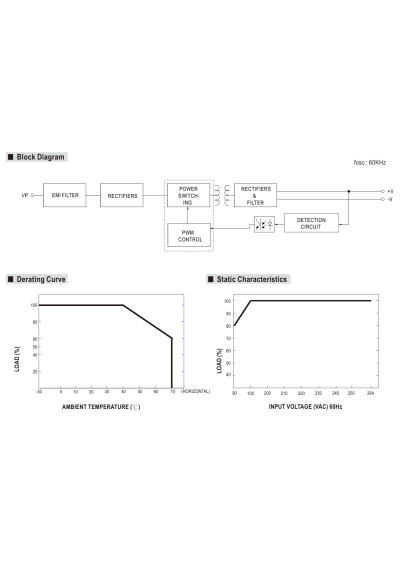

The complete source specification is available directly from the manufacturer: Official Mean Well datasheet — APC-25-SPEC 2025-12-12.
Manufacturer information: Mean Well states that the APC-25 series is not intended for LED lighting luminaire applications in the EU; for such applications, the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
tm_APC-25-500
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 20,1-30
- Output Current of CC power supply [mA]
- 500
- CC operating window
- 15-50
- Min. output voltage of led driver (CC)
- 15
- Max. output voltage of led driver (CC)
- 50
- IP grade
- 42
- Case type of power supply
- Waterproof
- Case type of power supply
- Isolated / secured
- Case material
- Plastic
- Length [mm]
- 84
- Grounding
- No
- Width [mm]
- 57
- Height/thickness [mm]
- 29.5
- Warranty [years]
- 2
- Input voltage [V]
- 90-264
- Interface
- Integrated input and output cable
Specific References
- MPN
- APC-25-500
