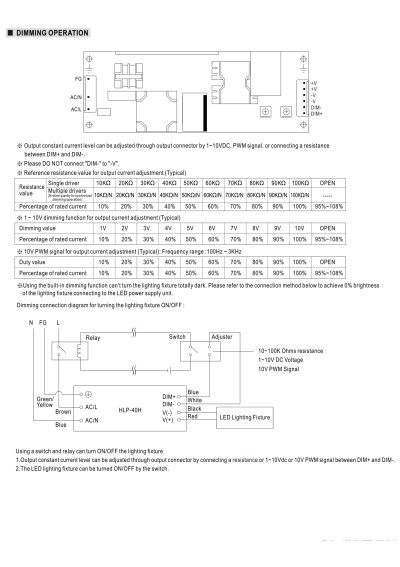

Mean Well HLP-40H-12 40 W CV+CC LED driver – dimming diagram

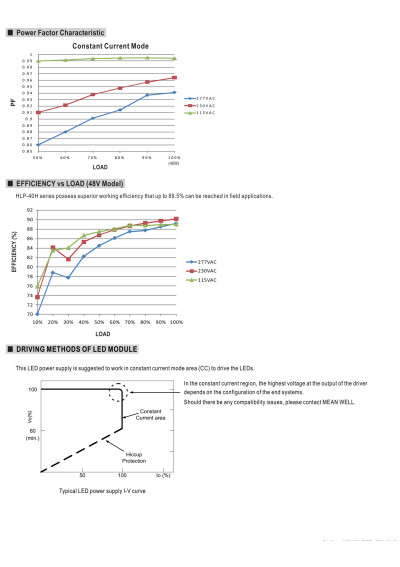

Mean Well HLP-40H-12 40 W CV+CC LED driver – power factor characteristic

Mean Well HLP-40H-12 40 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
113.81 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HLP-40H-12

Mean Well HLP-40H-12 is a 40 W CV+CC LED driver with a 7.2 V–12 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 105.68 PLN
20+ 97.55 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLP-40H-12 – full product specification

Mean Well HLP-40H-12 is a HLP-40H-series power supply rated at 40 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 7.2 V–12 V DC.

Full technical specifications

Coolingfree-air convection
Dimensions147 × 53 × 27 mm
Document revisionHLP-40H-SPEC 2024-10-16
Typical efficiency87 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current50 A
Operating temperature-40–70 °C
Rated current3330 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage12 V
CC-region minimum voltage7.2 V
Output voltage12 V
Over-voltage protection range15–21 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power40 W
Manufacturer warranty3 years
Weight0.2 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLP-40H-12

Data sheet

Power supply type
CV+CC
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
3330
CC operating window
7.2-12
Min. output voltage of led driver (CC)
7.2
Max. output voltage of led driver (CC)
12
Length [mm]
147
Width [mm]
53
Height/thickness [mm]
27
Warranty [years]
3
Input voltage [V]
90-305

Specific References

EAN13
4711287462677
MPN
HLP-40H-12
