Mean Well HLN-40H-15A 40 W CV+CC LED driver

Mean Well HLN-40H-15A 40 W CV+CC LED driver – dimensions

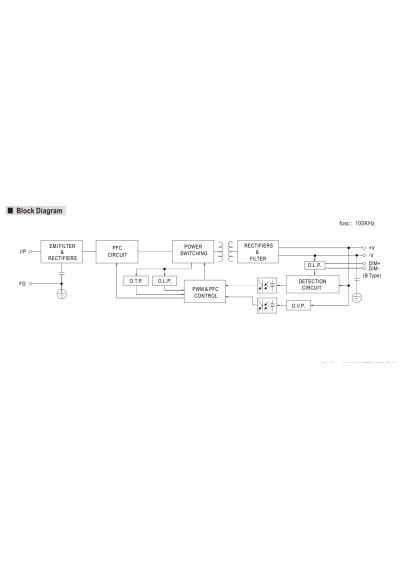

Mean Well HLN-40H-15A 40 W CV+CC LED driver – block diagram

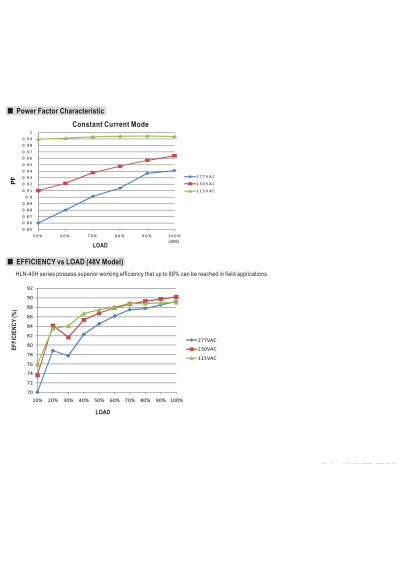

Mean Well HLN-40H-15A 40 W CV+CC LED driver – power factor characteristic

Mean Well HLN-40H-15A 40 W CV+CC LED driver

Name: Mean Well HLN-40H-15A 40 W CV+CC LED driver
Brand: Mean Well
SKU: tm_HLN-40H-15A
Price: 130.07 PLN
Availability: BackOrder

Minimum order quantity: 1. Order in multiples of 1.

130.07 PLN

Shipment in 8-10 working days

Category: Constant Current (CC)

Reference: tm_HLN-40H-15A

Mean Well HLN-40H-15A is a 40 W CV+CC LED driver with a 9 V–15 V constant-current region.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

HLN-40H-15A – full product specification

Mean Well HLN-40H-15A is a HLN-40H-series power supply rated at 40 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 9 V–15 V DC.

Full technical specifications

Fully isolated enclosure	Yes
Enclosure material	plastic
3-in-1 dimming	Yes
Cooling	free-air convection
Dimensions	161 × 61.5 × 35 mm
Document revision	HLN-40H-SPEC 2026-02-09
Typical efficiency	86.5 %
hold_up_time	230 vac ms: 16; 115 vac ms: 16
Input frequency	47–63 Hz
Input range	90–305 VAC / 127–431 VDC
Inrush current	50 A
IP rating	IP64
Operating temperature	-40–50 °C
Rated current	3330 mA
Operating mode	Constant voltage + constant current (CV+CC)
CC-region maximum voltage	15 V
CC-region minimum voltage	9 V
Output voltage	15 V
Over-voltage protection	Yes
Short-circuit protection	Yes
Rated power	40 W
Manufacturer warranty	3 years
Weight	0.35 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the HLN-40H series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
