Mean Well HLG-80H-36B 82.8 W CV+CC LED driver
Mean Well HLG-80H-36B 82.8 W CV+CC LED driver – dimensions

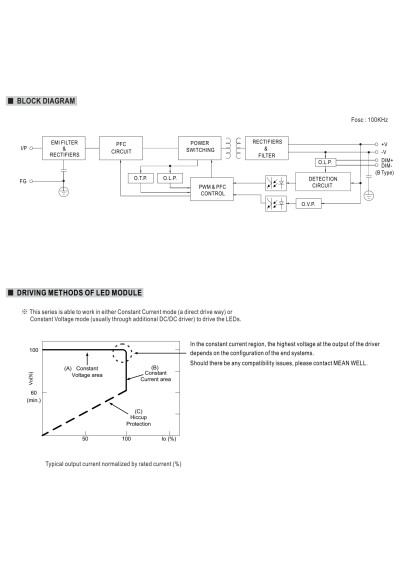

Mean Well HLG-80H-36B 82.8 W CV+CC LED driver – block diagram

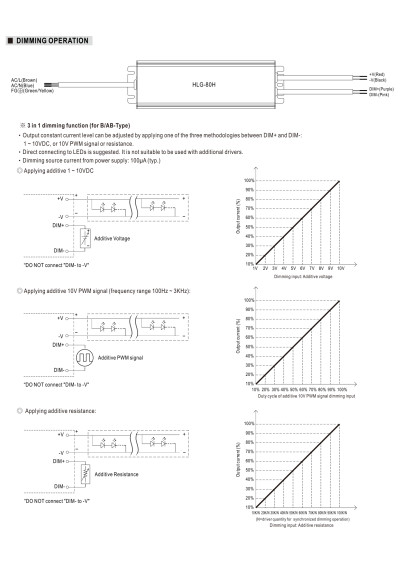

Mean Well HLG-80H-36B 82.8 W CV+CC LED driver – dimming diagram

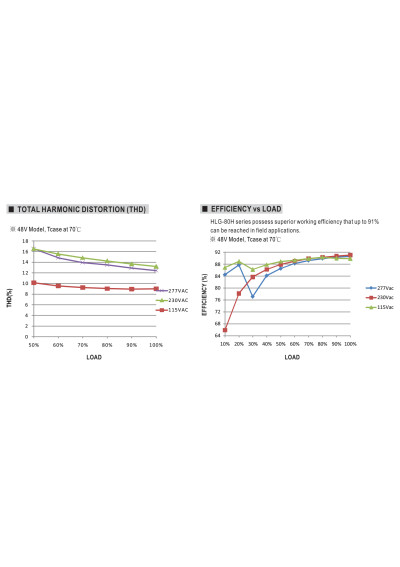

Mean Well HLG-80H-36B 82.8 W CV+CC LED driver – efficiency versus load characteristic

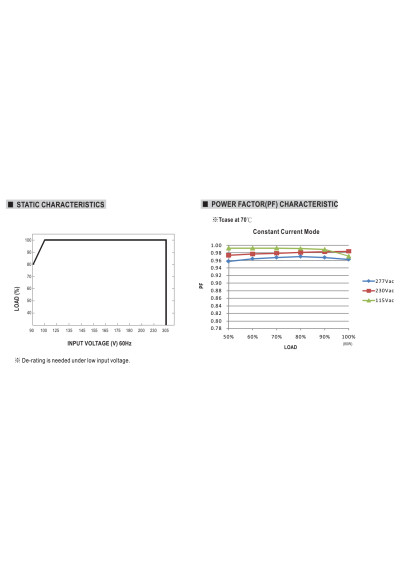

Mean Well HLG-80H-36B 82.8 W CV+CC LED driver – static characteristic

Mean Well HLG-80H-36B 82.8 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
195.11 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HLG-80H-36B

Mean Well HLG-80H-36B is a 82.8 W CV+CC LED driver with a 21.6 V–36 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 186.98 PLN
10+ 178.85 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-80H-36B – full product specification

Mean Well HLG-80H-36B is a HLG-80H-series power supply rated at 82.8 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 21.6 V–36 V DC.

Full technical specifications

3-in-1 dimmingYes
Dimensions195.6 × 61.5 × 38.8 mm
Document revisionHLG-80H-SPEC 20260-02-04
Typical efficiency91 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current70 A
IP ratingIP65
Rated current2300 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage36 V
CC-region minimum voltage21.6 V
Output voltage36 V
Over-voltage protection range41–49 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power82.8 W
Manufacturer warranty7 years
Weight0.84 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-80H-36B

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
2300
CC operating window
21.6-36
Min. output voltage of led driver (CC)
21.6
Max. output voltage of led driver (CC)
36
IP grade
65
Length [mm]
195.6
Width [mm]
61.5
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287448978
MPN
HLG-80H-36B
New
