Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA – block diagram Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA – dimming diagram Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA – efficiency versus load characteristic
Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA
Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA – block diagram

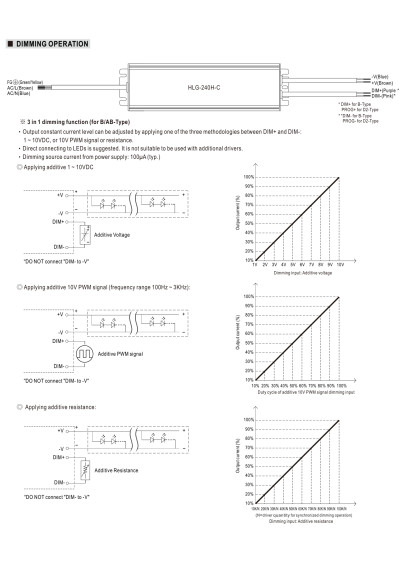

Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA – dimming diagram

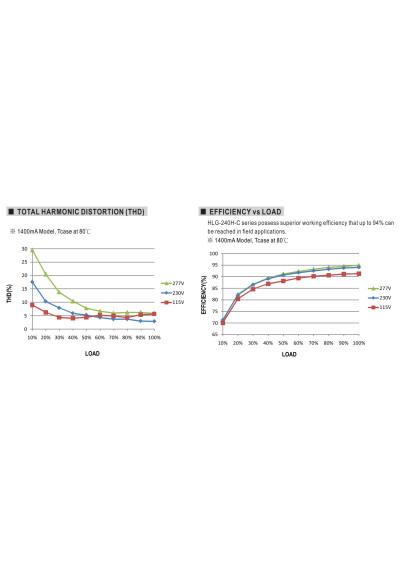

Mean Well HLG-240H-C2100AB 249.9 W CC LED driver 2100 mA – efficiency versus load characteristic

Mean Well HLG-240H-C2100AB 249.9W 2100mA 59–119V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
333.33 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-240H-C2100AB

Mean Well HLG-240H-C2100AB is a 249.9 W constant-current LED driver rated at 2100 mA, with a 59 V–119 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 317.07 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-240H-C2100AB – full product specification

Mean Well HLG-240H-C2100AB is a HLG-240H-C-series power supply rated at 249.9 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2100 mA across a 59 V–119 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions244.2 × 68 × 38.8 mm
Document revisionHLG-240H-C-SPEC 2026-02-04
Typical efficiency93.5 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current75 A
IP ratingIP65
Rated current2100 mA
Operating modeConstant Current (CC)
CC-region maximum voltage119 V
CC-region minimum voltage59 V
Over-voltage protection range125–137 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power249.9 W
Manufacturer warranty7 years
Weight1.3 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-240H-C2100AB

Data sheet

Power supply type
Constant Current (CC)
Output Current of CC power supply [mA]
2100
CC operating window
59-119
Min. output voltage of led driver (CC)
59
Max. output voltage of led driver (CC)
119
IP grade
65
Length [mm]
244.2
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287452494
MPN
HLG-240H-C2100AB
