Mean Well HBG-160P-36A 158.4 W CV+CC LED driver
Mean Well HBG-160P-36A 158.4 W CV+CC LED driver – dimensions

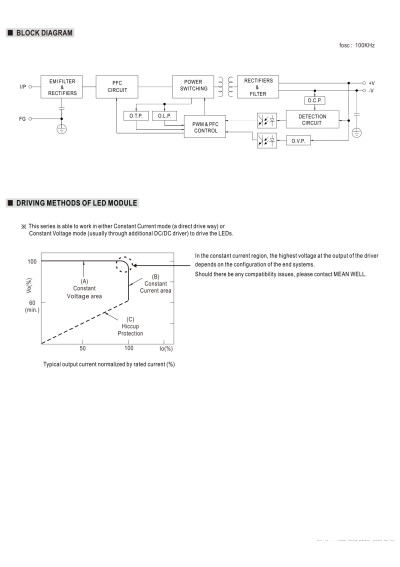

Mean Well HBG-160P-36A 158.4 W CV+CC LED driver – block diagram

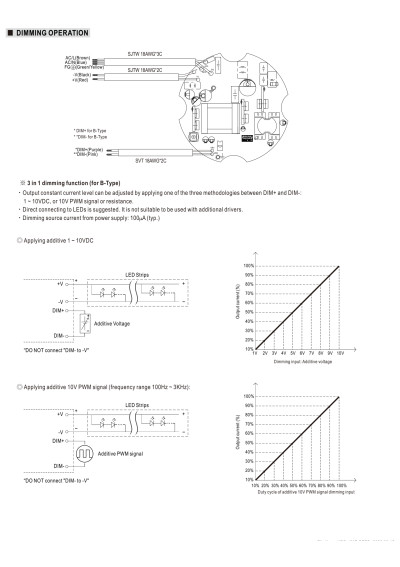

Mean Well HBG-160P-36A 158.4 W CV+CC LED driver – dimming diagram

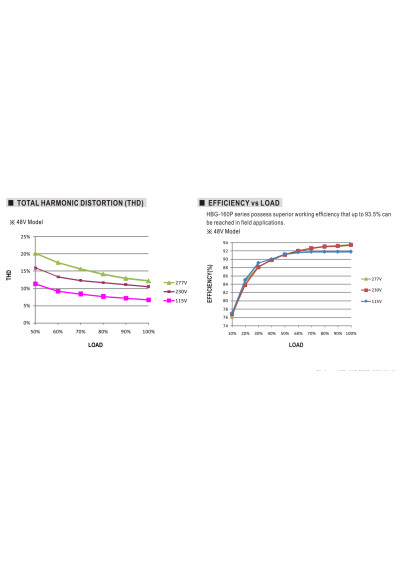

Mean Well HBG-160P-36A 158.4 W CV+CC LED driver – efficiency versus load characteristic

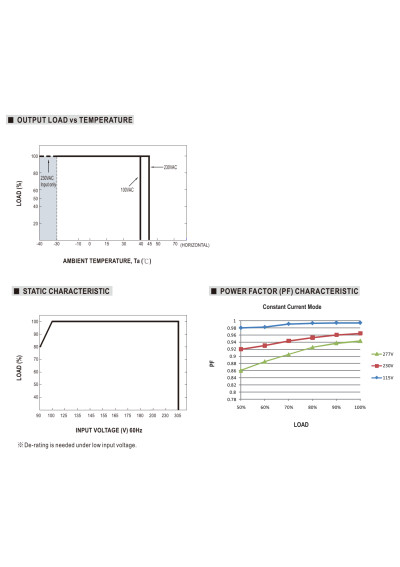

Mean Well HBG-160P-36A 158.4 W CV+CC LED driver – load versus temperature characteristic

Mean Well HBG-160P-36A 158.4 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
195.11 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HBG-160P-36A

Mean Well HBG-160P-36A is a 158.4 W CV+CC LED driver with a 21.6 V–36 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 186.98 PLN
10+ 178.85 PLN
20+ 170.72 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HBG-160P-36A – full product specification

Mean Well HBG-160P-36A is a HBG-160P-series power supply rated at 158.4 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 21.6 V–36 V DC.

Full technical specifications

3-in-1 dimmingYes
Document revisionHBG-160P-SPEC 2026-06-15
Typical efficiency92 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–417 VDC
Inrush current65 A
Rated current4400 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage36 V
CC-region minimum voltage21.6 V
Output voltage36 V
Over-voltage protection range41–47 V
Over-voltage protectionYes
Rated power158.4 W
Manufacturer warranty5 years
Weight0.4 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HBG-160P-36A

Data sheet

Power supply type
CV+CC
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
4400
CC operating window
21.6-36
Min. output voltage of led driver (CC)
21.6
Max. output voltage of led driver (CC)
36
Warranty [years]
5
Input voltage [V]
90-305

Specific References

EAN13
4711287448145
MPN
HBG-160P-36A
