Mean Well HBG-100P-36A 97.2 W CV+CC LED driver
Mean Well HBG-100P-36A is a 97.2 W CV+CC LED driver with a 21.6 V–36 V constant-current region.
Mean Well HBG-100P-36A 97.2 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
154.46 PLN
Shipment in 8-10 working days
tm_HBG-100P-36A
Mean Well HBG-100P-36A is a 97.2 W CV+CC LED driver with a 21.6 V–36 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
HBG-100P-36A – full product specification
Mean Well HBG-100P-36A is a HBG-100P-series power supply rated at 97.2 W. The parameters below come from the exact official manufacturer datasheet.

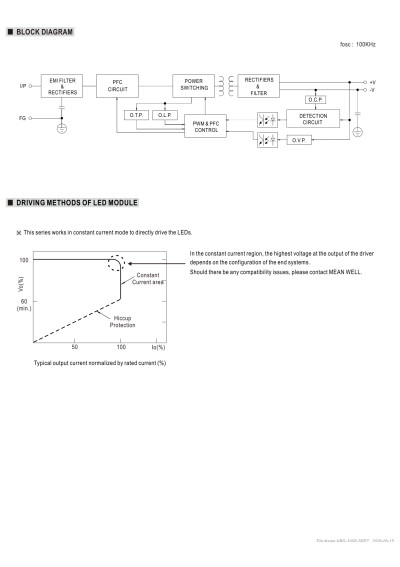

CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 21.6 V–36 V DC.
Full technical specifications

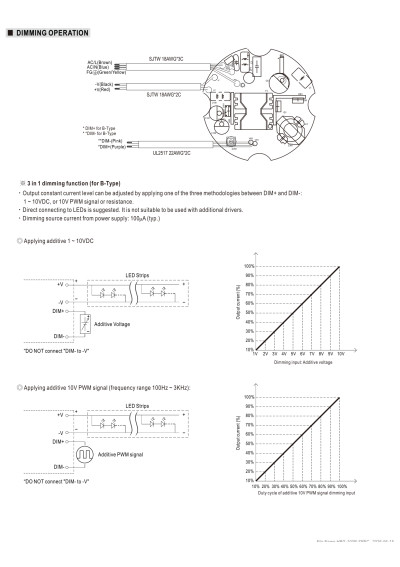

| 3-in-1 dimming | Yes |
|---|---|
| current_ripple_pct | 5 % |
| Document revision | HBG-100P-SPEC 2026-06-15 |

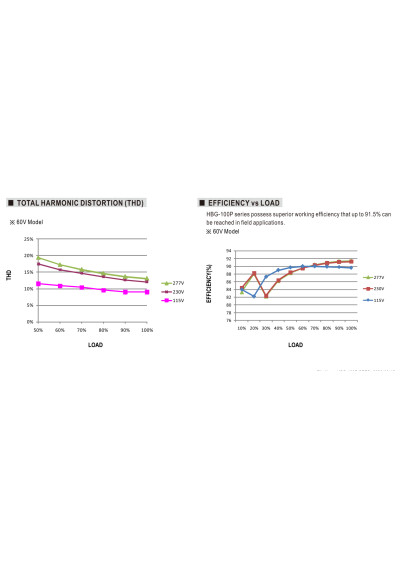

| Typical efficiency | 91 % |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 60 A |
| Rated current | 2700 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 36 V |
| CC-region minimum voltage | 21.6 V |
| Output voltage | 36 V |
| Over-voltage protection range | 41–49 V |
| Over-voltage protection | Yes |
| Rated power | 97.2 W |
| Manufacturer warranty | 5 years |
| Weight | 0.3 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_HBG-100P-36A
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 60,1-100
- Output Current of CC power supply [mA]
- 2700
- CC operating window
- 21.6-36
- Min. output voltage of led driver (CC)
- 21.6
- Max. output voltage of led driver (CC)
- 36
- Warranty [years]
- 5
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287448053
- MPN
- HBG-100P-36A
