Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – dimensions Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – block diagram Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – dimming diagram Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – efficiency versus load characteristic
Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA
Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – dimensions

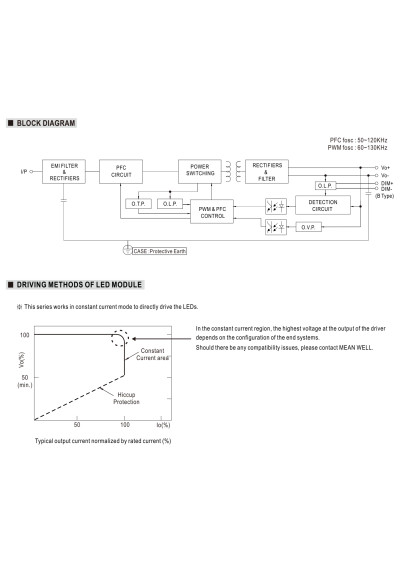

Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – block diagram

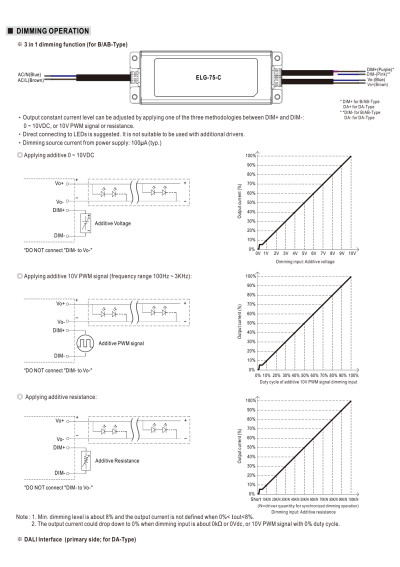

Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – dimming diagram

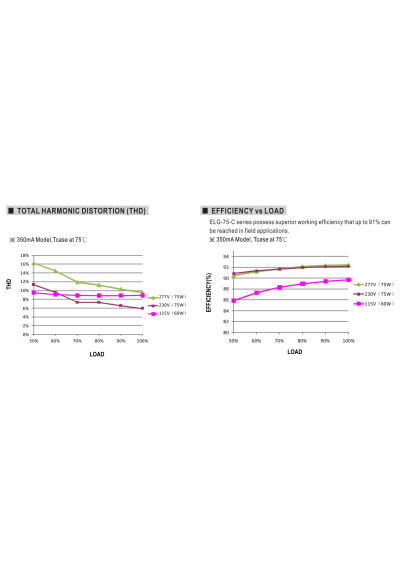

Mean Well ELG-75-C1400B-3Y 75.6 W CC LED driver 1400 mA – efficiency versus load characteristic

Mean Well ELG-75-C1400B-3Y 75.6W 1400mA 27–54V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
162.59 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_ELG-75-C1400B-3Y

Mean Well ELG-75-C1400B-3Y is a 75.6 W constant-current LED driver rated at 1400 mA, with a 27 V–54 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 154.46 PLN
10+ 146.33 PLN
20+ 138.20 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-75-C1400B-3Y – full product specification

Mean Well ELG-75-C1400B-3Y is a ELG-75-C-series power supply rated at 75.6 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1400 mA across a 27 V–54 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions180 × 63 × 35.5 mm
Document revisionELG-75-C-SPEC 2026-07-06
Typical efficiency90 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current50 A
IP ratingIP65
Rated current1400 mA
Operating modeConstant Current (CC)
CC-region maximum voltage54 V
CC-region minimum voltage27 V
Over-voltage protection range64–79 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power75.6 W
Manufacturer warranty5 years
Weight0.8 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-75-C1400B-3Y

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
1400
CC operating window
27-54
Min. output voltage of led driver (CC)
27
Max. output voltage of led driver (CC)
54
IP grade
65
Length [mm]
180
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287481463
MPN
ELG-75-C1400B-3Y
