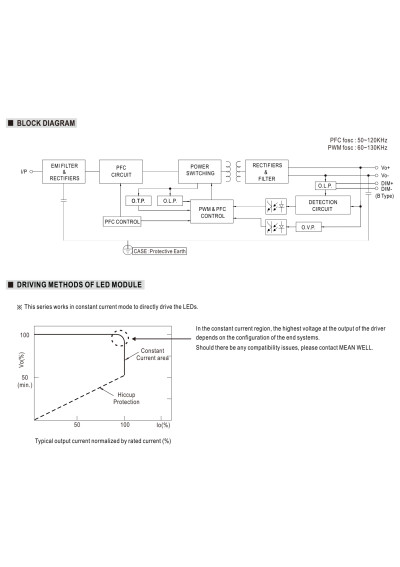

Mean Well ELG-240-C1400D23Y 239.4 W CC LED driver 1400 mA – block diagram

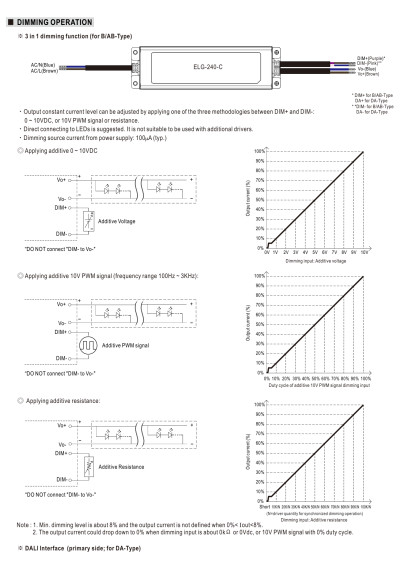

Mean Well ELG-240-C1400D23Y 239.4 W CC LED driver 1400 mA – dimming diagram

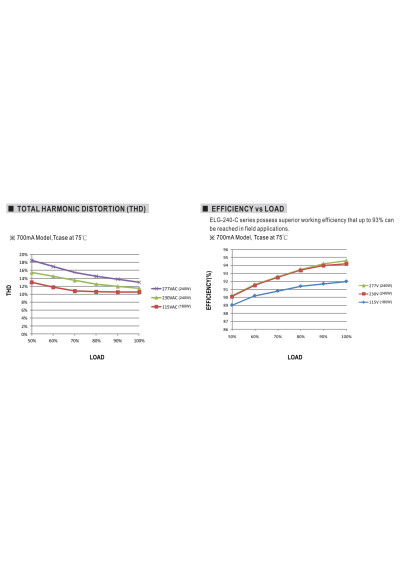

Mean Well ELG-240-C1400D23Y 239.4 W CC LED driver 1400 mA – efficiency versus load characteristic

Mean Well ELG-240-C1400D23Y 239.4W 1400mA 86–171V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
268.28 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_ELG-240-C1400D2-3Y

Mean Well ELG-240-C1400D23Y is a 239.4 W constant-current LED driver rated at 1400 mA, with a 86 V–171 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 252.02 PLN
10+ 243.89 PLN
20+ 227.63 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-240-C1400D23Y – full product specification

Mean Well ELG-240-C1400D23Y is a ELG-240-C-series power supply rated at 239.4 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1400 mA across a 86 V–171 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions244 × 71 × 37.5 mm
Document revisionELG-240-C-SPEC 2026-07-06
Typical efficiency93 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current75 A
IP ratingIP65
Rated current1400 mA
Operating modeConstant Current (CC)
CC-region maximum voltage171 V
CC-region minimum voltage86 V
Over-voltage protection range192–216 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power239.4 W
Manufacturer warranty5 years
Weight1.22 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-240-C1400D2-3Y

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
1400
CC operating window
86-171
Min. output voltage of led driver (CC)
86
Max. output voltage of led driver (CC)
171
IP grade
65
Length [mm]
244
Width [mm]
71
Height/thickness [mm]
37.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287446547
MPN
ELG-240-C1400D23Y
New
