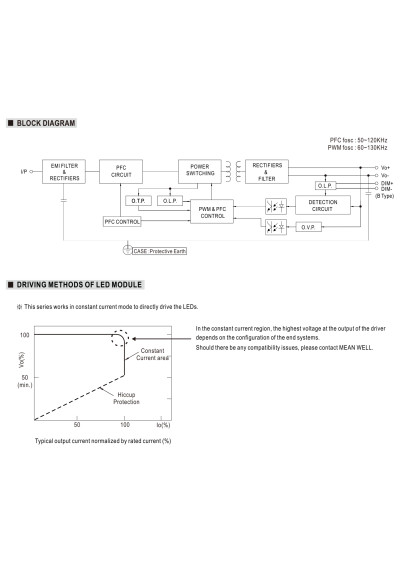

Mean Well ELG-200-C700DA-3Y 200.2 W CC LED driver 700 mA – block diagram

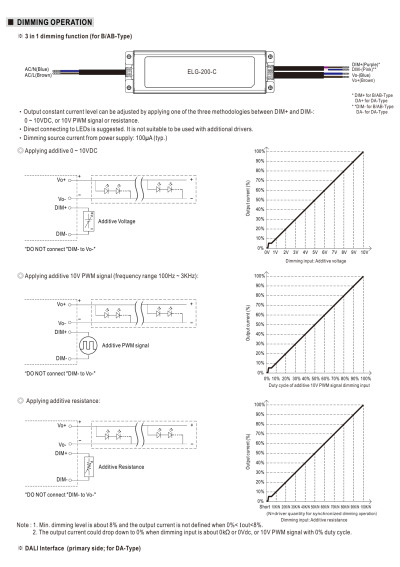

Mean Well ELG-200-C700DA-3Y 200.2 W CC LED driver 700 mA – dimming diagram

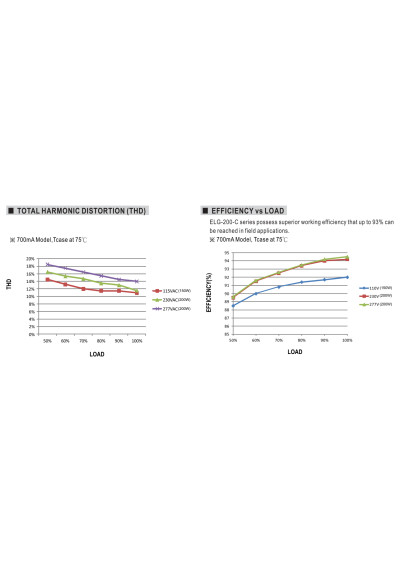

Mean Well ELG-200-C700DA-3Y 200.2 W CC LED driver 700 mA – efficiency versus load characteristic

Mean Well ELG-200-C700DA-3Y 200.2W 700mA 142–286V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
268.28 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_ELG-200-C700DA-3Y

Mean Well ELG-200-C700DA-3Y is a 200.2 W constant-current LED driver rated at 700 mA, with a 142 V–286 V output-voltage region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-200-C700DA-3Y – full product specification

Mean Well ELG-200-C700DA-3Y is a ELG-200-C-series power supply rated at 200.2 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 700 mA across a 142 V–286 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions244 × 71 × 37.5 mm
Document revisionELG-200-C-SPEC 2026-07-06
Typical efficiency93 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current65 A
IP ratingIP65
Rated current700 mA
Operating modeConstant Current (CC)
CC-region maximum voltage286 V
CC-region minimum voltage142 V
Over-voltage protection range315–370 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power200.2 W
Manufacturer warranty5 years
Weight1.22 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-200-C700DA-3Y

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
700
CC operating window
142-286
Min. output voltage of led driver (CC)
142
Max. output voltage of led driver (CC)
286
IP grade
65
Length [mm]
244
Width [mm]
71
Height/thickness [mm]
37.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287446264
MPN
ELG-200-C700DA-3Y
