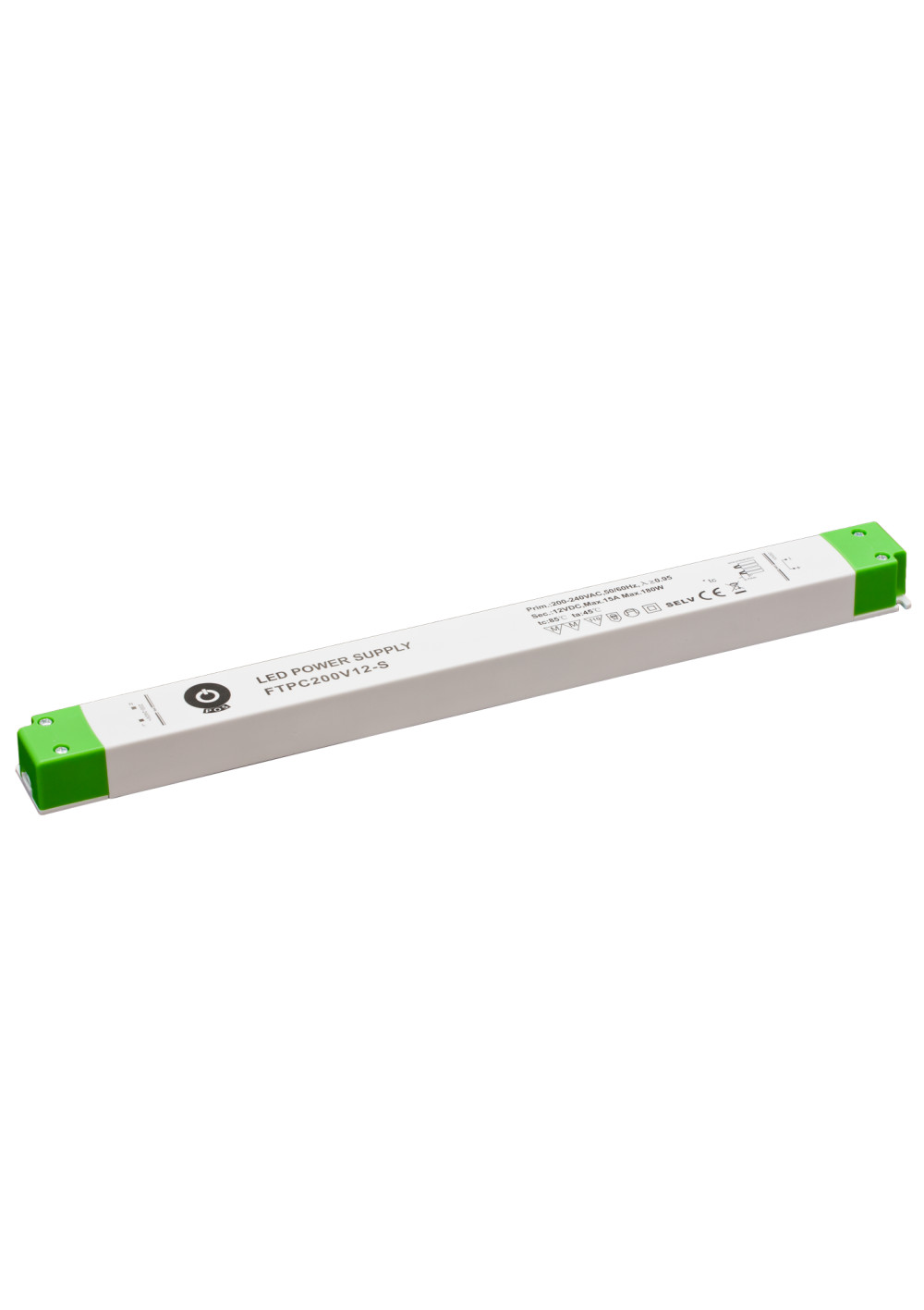

LED Power Supply | FTPC200V12-S 180W Slim Constant Voltage LED driver

Reliable LED Power Supply Technology

The FTPC200V12-S series provides a premium, high-efficiency led power supply for demanding professional lighting systems. This unit operates exclusively with a constant voltage (CV) output. It ensures stable power delivery for all your 12V LED installations. This power supply accepts a broad European AC input range, specifically 180 to 264VAC. Efficiency is typically high, reaching 92% under standard operation. Furthermore, the Power Factor (PF) is typically excellent, exceeding 0.95 at 230VAC and full load.

This professional-grade product is designed for installations where space is limited. Its ultra-slim dimensions measure just 356.4 x 32.1 x 22.3mm. Cooling is managed efficiently and reliably through free air convection. This unit delivers 180W of rated power at a 12V output. The maximum ripple and noise level is low, rated at only 300mVP-P. The output voltage tolerance is tightly controlled at ± 5%. This precise performance is vital for quality LED applications. Ensure maximum reliability with this high-quality constant voltage supply.

Advanced Safety Features of the LED Power Supply

The FTPC200V12-S led power supply is equipped with four necessary safety functions. These built-in protections ensure system longevity and reliable operation. This compliance meets global regulations for lighting components.

Key Protection Mechanisms

• • Short Circuit Protection (SCP): If a short circuit occurs, the unit enters hiccup mode. In this mode, the output power cycles on and off repeatedly. The power supply automatically recovers after the fault condition is removed.
• • Over Current Protection (OCP): This protection activates if the load current exceeds 110% to 160% of the rated current. Like SCP, it operates using the self-recovering hiccup mode.
• • Over Voltage Protection (OVP): OVP guards against dangerously high output voltage levels. For the 12V model, OVP activates between 13.5V and 18.5V. This protection also utilizes the automatic recovery hiccup mode.
• • Over Temperature Protection (OTP): If the internal temperature reaches 115°C ± 10°C, the output voltage is shut down. To recover from OTP, the input power must be completely disconnected and then reapplied.

Technical Compliance and Operating Environment

The power supply is compliant with major safety standards. These standards include EN61347-1 and EN61347-2-13. It also meets EMC requirements like EN55015 for emissions and EN61547 for immunity. The operational temperature range is wide, spanning from -20°C up to +45°C. Note that this power supply is considered a component. The final equipment using this unit must be re-qualified for full compliance.

Need a stable 12V 180W solution? Choose the FTPC200V12-S today!
