Philips CertaDrive 30W 0.35A

Technical data (summary)

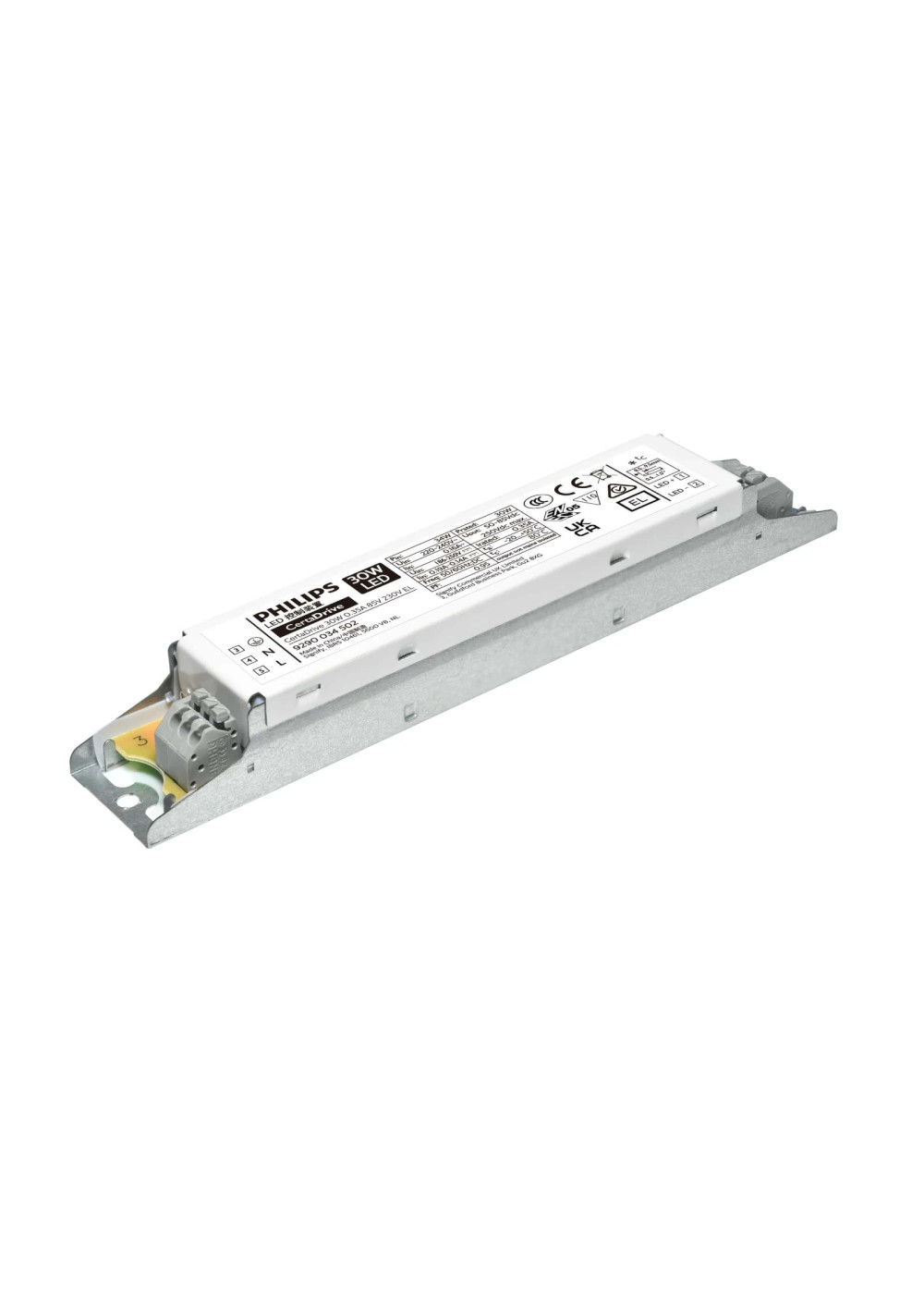

Philips CertaDrive 30W 0.35A – reliable CC LED power supply for linear luminaires

Philips CertaDrive 30W 0.35A 85V 230V EL is a constant current LED power supply designed for linear and panel luminaires in office, commercial and industrial applications. A fixed output current of 350 mA and a wide output voltage window of 50–85 V allow you to supply standard linear LED modules with a system power of around 30 W, ensuring stable and efficient lighting.

The CertaDrive range offers a very good balance between cost and performance – high efficiency, low current ripple and a rated lifetime of 50 000 h make this driver a solid choice for volume luminaires where reliability and consistent performance are critical.

Key features of the CertaDrive 30W 0.35A led power supply

• Constant current LED driver – 350 mA fixed output current.
• Wide output voltage window: 50–85 V DC (approx. 17.5–29.75 W output power).
• Mains supply 220–240 V AC, 50–60 Hz with DC operation capability.
• Typical efficiency around 88 % at full load.
• High power factor PF ≥ 0.95 at nominal load.
• Low output ripple – for comfortable, practically flicker-free light.
• Rated lifetime up to 50 000 h at specified T_case-life.
• Compact housing for linear luminaires: approx. 168 × 30 × 21 mm.
• IP20 rating, indoor use, Class I.
• Integrated protections: short-circuit, overload, over-voltage and over-temperature (see datasheet for limits).
• Fixed current, non-dimmable – ideal for standard, cost-optimised luminaire designs.

Typical applications

The CertaDrive 30W 0.35A driver is intended mainly for:

• linear LED luminaires in offices, corridors, warehouses and retail spaces,
• LED panels and grid luminaires,
• surface-mounted and recessed fixtures with linear LED modules,
• retrofit projects replacing fluorescent systems with LED.

With its constant 350 mA output and 50–85 V window, it is a perfect match for linear modules around 20–30 W where good efficacy and simple integration are required.

Installation notes

The driver is a non-isolated design. All applicable safety rules and insulation requirements for accessible parts of the luminaire must therefore be strictly followed. Installation should be carried out by a qualified electrician in accordance with the Philips datasheet and local regulations.
